ASTM D638 (technically equivalent to ISO 527 -1) is a testing standard which ascertains the tensile properties of a plastic material. The test method can be used for testing materials up to 14mm (0.55 in.) and the material should be in the shape of a “dumbbell” or “dog bone”. If a material is thicker than 14mm then it has to be reduced. However, if a sample is less than 1mm (0.04 in.) in thickness then it must be tested to standard ASTM D882, for example, film or thin sheeting.
The tensile properties of a material are the abilities of a material to resist deformation or breaking under tension. Although this blog is primarily focused on plastics, other materials such as metals and ceramics can be tested using tensile tests.

Testing Procedure

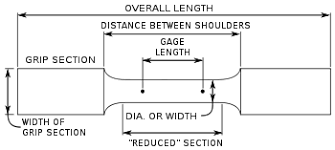

A sample of material will be cut or injection moulded into one of five required shapes, the “dumbbell” or “dog bone”. Each material will be slightly different depending on the thickness or toughness of the material.

ASTM D638 - Tensile Testing

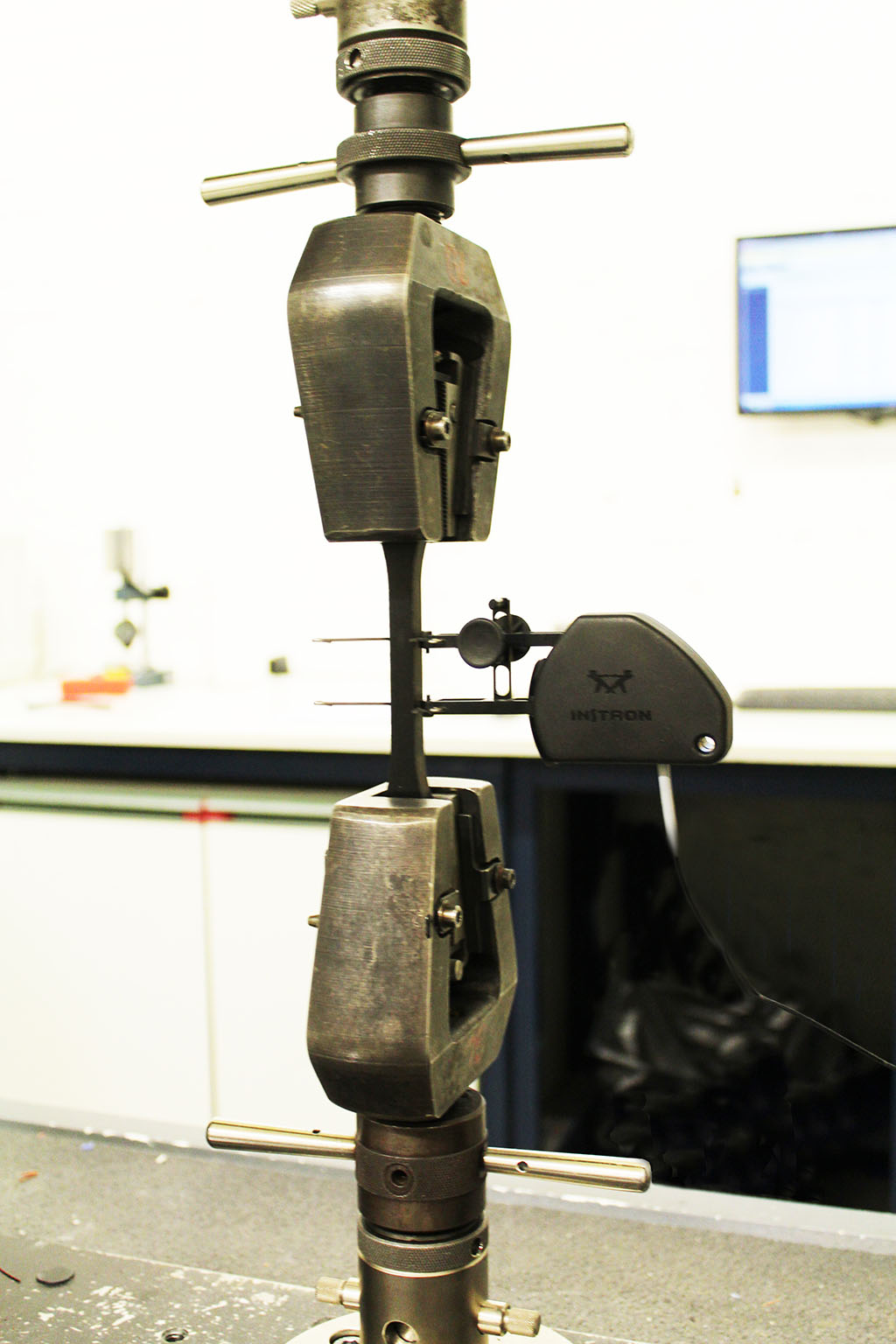

Once the material has been specifically shaped and is ready for testing, it is loaded into tensile grips and an extensometer is attached (if contact extensometer is used) to the sample. The test begins as the aforementioned grips separate, pulling the sample from both ends at a constant rate of speed. The rate of speed can be altered depending again on the thickness or toughness of the chosen material/sample. This speed can range from 0.05 inches all the way through to 20 inches per minute this variant will influence the results. The test will usually last between 30 seconds to five minutes and ends when the material deforms, ruptures or breaks.

Measurements
1. Tensile Strength – The maximum amount of tensile stress that a material can withstand before failure through a deformation, rupture or breaking.
2. Elongation at Yield – The ratio between increased length and initial length at the yield point.
3. Elongation at Break – The ratio between changed length and initial length after breakage.
4. Nominal Strain at Break – Tensile strain at the tensile stress at break.
5. Modulus of Elasticity – The tendency of a material to deform along an axis when opposing forces are applied along that axis. The ratio between tensile stress and tensile strain.
6. Secant Modulus – It is the slope of a line from the origin to any point on a stress-strain curve.

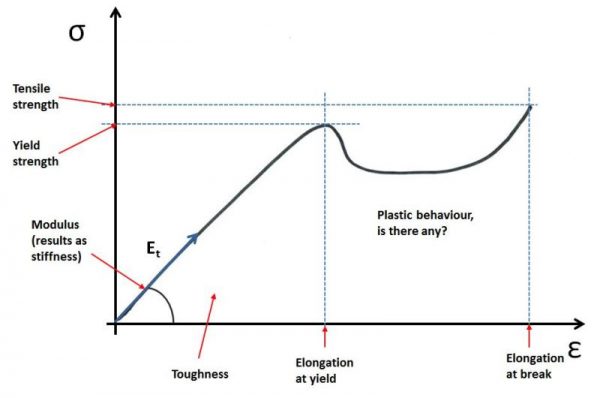

ASTM D638 - Stress/strain graph

Hoop Shaped

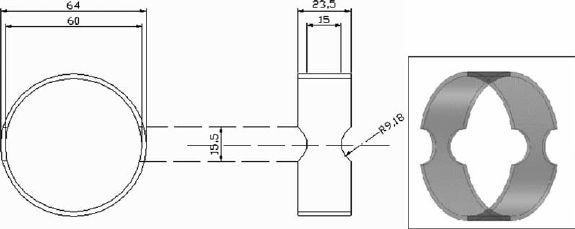

Although the standard testing is conformed to “dumbbell” and “dog bone” shaped materials, here at Impact we have tested materials which are hoop-shaped. When performing a tensile strength test to a hoop, it works in a very similar fashion to a standard material test. A “dumbbell” shape is cut into the hoop and is then pulled apart in the same manner as the standard material.

ASTM D638 - hoop

Impact Solutions
